Yes, flex PCBs (Flexible Printed Circuit Boards) can have vias, and they are commonly used in these designs. Vias are essential for creating electrical connections between different layers of the PCB, whether it’s a rigid or flexible board. However, the design and manufacturing of vias in flex PCBs require special considerations due to the unique properties of the flexible materials used.

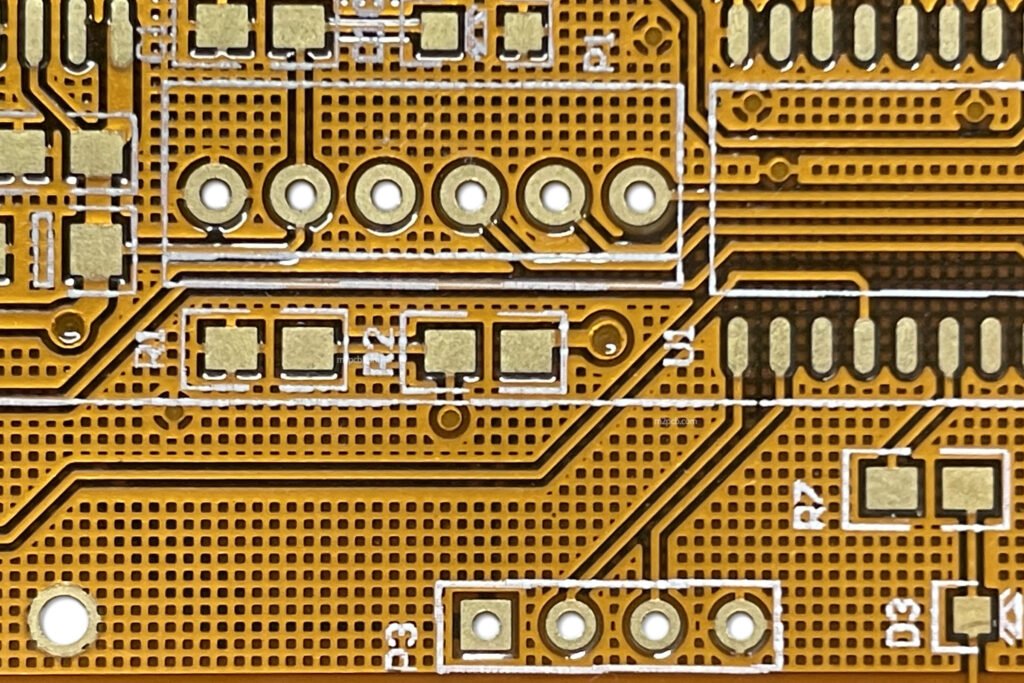

What Types of Vias in Flex PCBs?

1. Through-Hole Vias:

• Description: These are the most common type of vias and extend through all the layers of the flex PCB. They are used to connect traces on the top and bottom layers and any internal layers in multi-layer flex PCBs.
• Manufacturing Process: The process involves drilling holes through the entire stack of materials and then plating the hole walls with copper to create the electrical connection. The plating process must be carefully controlled to ensure good adhesion to the flexible polyimide substrate.

2. Blind Vias:

• Description: Blind vias connect an outer layer to one or more inner layers but do not pass through the entire board. These are more complex and are used in multi-layer flex PCBs to save space and optimize the layout.
• Use in Flex PCBs: Blind vias are less common in flex PCBs than in rigid ones but can be used when space constraints or specific design requirements necessitate connections between only a few layers.

3. Buried Vias:

• Description: Buried vias connect internal layers without reaching the outer surfaces of the PCB. It’s used to create connections within the internal layers, leaving the outer layers free for other routing or component placement.
• Use in Flex PCBs: Buried vias are also possible in multi-layer flex PCBs, though it add complexity and cost to the manufacturing process.

4. Microvias:

• Description: Microvias are very small vias, typically with a diameter of less than 150 microns, used to connect layers in high-density interconnect (HDI) designs. They are often used in flex PCBs to reduce space and increase routing density.
• Laser Drilling: Microvias in flex PCBs are usually created using laser drilling, which allows for very precise and small vias that are suitable for fine-pitch components and complex designs.

What Considerations for Vias in Flex PCBs?

1. Material Handling:

• Flexible Substrate: The flexible polyimide substrate used in flex PCBs is more sensitive than the FR4 used in rigid PCBs. The drilling process must be carefully managed to avoid tearing or damaging the material.
• Adhesion: Ensuring proper adhesion of the copper plating in the vias is critical for reliability, especially since the flex PCB may be subjected to bending and flexing that can stress the via connections.

2. Plating and Reliability:

• Plating Integrity: The copper plating inside the vias must be consistent and robust, as flex PCBs are more likely to experience mechanical stress. Poor plating can lead to cracked or open vias, leading to circuit failures.
• Staggered Vias: In some designs, staggered vias (vias that do not align directly on top of each other in different layers) are used to distribute mechanical stress and improve reliability.

3. Thermal and Mechanical Stress:

• Flexing and Bending: Vias in flex PCBs must be designed to withstand the mechanical stresses of bending and flexing. Typically, vias are located in areas of the PCB that experience less movement, or the design may include strain relief features to protect the vias.
• Reinforcement: Some designs use stiffeners or additional layers of material around via areas to reinforce these critical points and reduce the risk of failure due to repeated flexing.

4. Design Considerations:

• Avoiding Stress Concentration: When designing flex PCBs, it’s important to avoid placing vias in areas that will experience significant bending or flexing. Concentrated stress in these areas can lead to via failure.
• Via Filling: In some high-reliability applications, vias may be filled with conductive material and then capped to provide additional strength and protect against environmental factors.

Flex PCBs can indeed have vias, including through-hole, blind, buried, and microvias. These vias are crucial for creating connections between different layers of the PCB. However, due to the unique properties of flexible materials, special care must be taken in the design and manufacturing processes to ensure that the vias are reliable and can withstand the mechanical stresses associated with flexing and bending. Proper material handling, plating, and design considerations are essential to maintain the integrity of vias in flex PCBs.
