The cost of a flexible PCB (flex PCB) can vary significantly depending on several factors, including the complexity of the design, the number of layers, the materials used, the quantity ordered, and any additional processes or treatments required. Below, I’ll break down the key factors that influence the cost of a flex PCB and provide some general pricing ranges to give you an idea of what to expect.

What Factors Affecting the Cost of Flexible PCB?

1. Number of Layers:

• Single-layer Flex PCB: This is the simplest type, with a single conductive layer. These are generally less expensive than multi-layer boards.
• Multi-layer Flex PCB: As the number of layers increases, so does the complexity and cost. Multi-layer boards are used in more complex applications where space is limited, but more circuitry is needed.

2. Board Size and Shape:

• Size: Larger boards require more material, which increases the cost.
• Shape: Complex or irregular shapes might require more intricate manufacturing processes, leading to higher costs.

3. Material Type:

• Substrate: The most common material for flex PCBs is polyimide, which is more expensive than the FR4 material typically used in rigid PCBs. The quality and thickness of the polyimide also affect the cost.
• Copper Weight: The thickness (weight) of the copper layer on the flex PCB impacts cost. Thicker copper layers are more expensive but are necessary for higher current-carrying applications.

4. Quantity:

• Prototyping vs. Mass Production: Small quantities, such as prototypes, are much more expensive per unit than larger production runs. This is due to setup costs and economies of scale.
• Batch Size: Ordering a larger batch can reduce the per-unit cost significantly, as the setup and tooling costs are spread across more units.

5. Complexity and Special Requirements:

• Component Density: High-density designs with fine traces and small spaces between them increase the manufacturing difficulty and cost.
• Stiffeners: Adding stiffeners to certain areas of a flex PCB to support components or connectors adds to the cost.
• Surface Finishes: The type of surface finish, such as ENIG (Electroless Nickel Immersion Gold), OSP (Organic Solderability Preservatives), or HASL (Hot Air Solder Leveling), will also impact the price.
• Solder Mask and Silkscreen: Adding a solder mask or silkscreen layer to the flex PCB can increase costs slightly.

6. Turnaround Time:

• Standard Lead Time: If you’re not in a rush, opting for standard lead times can help keep costs down.
• Expedited Manufacturing: Rush orders will increase the cost due to the need for expedited manufacturing processes.

What’s General Pricing Ranges of Us?

Given the wide range of factors that influence pricing, it’s challenging to provide exact numbers without specific details. However, I can give you some general price ranges for reference:

Single-Layer Flex PCB:

• Prototype Quantity (1-10 pcs $45 to $100 per design.
• Low Volume (100-500 pcs): $50 to $150 per M².
• High Volume (1000+ pcs): $40 to $130 per M².

Multi-Layer Flex PCB (2 to 6 layers):

• Prototype Quantity (1-10 pcs): $50 to $150 per design.
• Low Volume (100-500 pcs): $70 to $220 per M².
• High Volume (1000+ pcs): $60 to $200 per M².

Rigid-Flex PCB (combination of rigid and flexible sections):

• Prototype Quantity (1-10 pcs): $220 to $1100 per design.
• Low Volume (100-500 pcs): $50 to $300 per M2.
• High Volume (1000+ pcs): $45 to $280per M2.

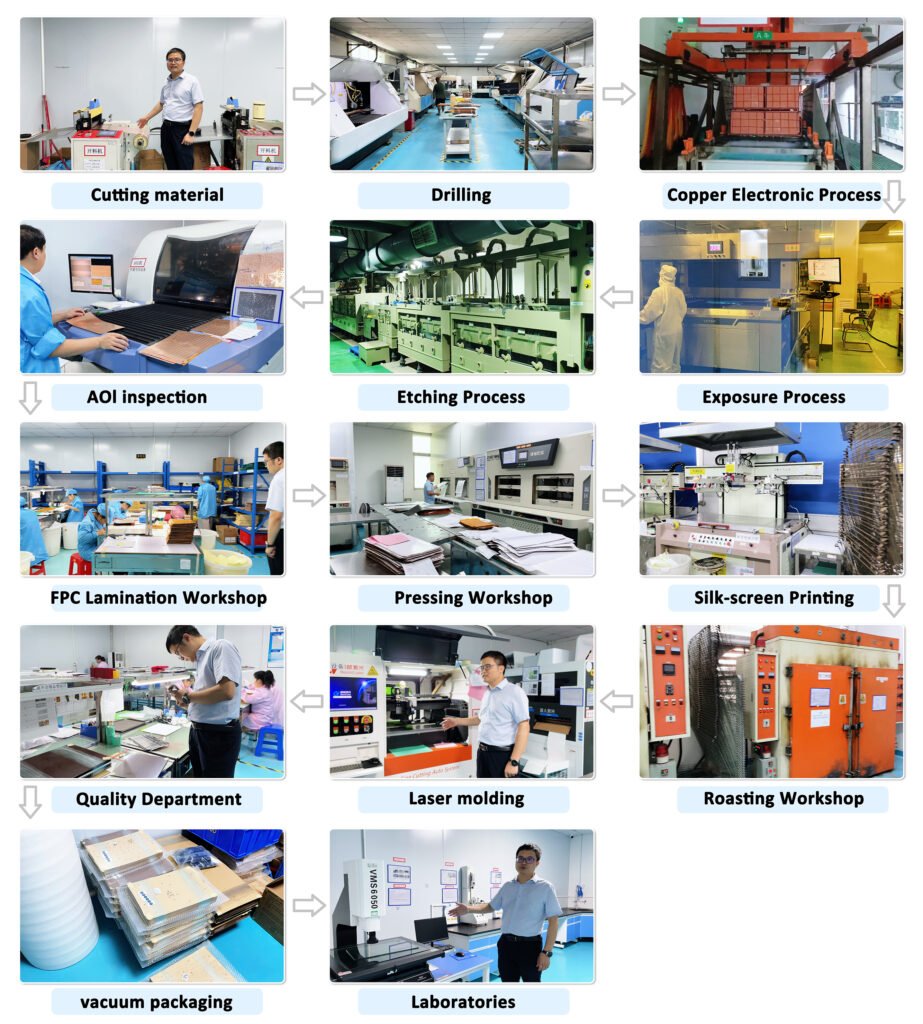

How to Get an Accurate Cost Estimate of Flex PCB?

1. Provide Detailed Specifications or Gerber files:

• The more detailed your specifications (e.g., number of layers, materials, dimensions, etc.), the more accurate your cost estimate will be from a manufacturer. Certainly, the best way is to send the Gerber file to us to quote.

2. Consider Multiple Quotes:

• Get quotes from multiple PCB manufacturers to compare prices, lead times, and services. Different manufacturers may have different capabilities and pricing structures. We have been in the field of flexible PCB for many years, and believe we can solve most of the issues of FPCB boards.

3. Discuss with the Manufacturer:

• If cost is a major concern, discussing the requirements with us. We try the best to suggest design changes, alternative materials, or production methods that can reduce costs without compromising quality.

The cost of a flexible PCB can vary widely based on many factors, from the complexity of the design to the quantity produced. For simple, single-layer designs in large quantities, costs can be relatively low, while multi-layer or rigid-flex designs, especially in small quantities, can be quite expensive. To get an accurate cost estimate, it’s important to work closely with us, and provide detailed specifications, and consider how design choices impact the overall price.
