What is rigid PCB vs flex PCB?

What is rigid PCB vs flex PCB?

Rigid PCBs (Printed Circuit Boards) and Flex PCBs are two types of circuit boards used in various electronic devices. They serve the same fundamental purpose—providing a platform to connect and support electronic components—but differ significantly in terms of design, materials, and applications. Here’s a breakdown of the differences between rigid and flex PCBs:

About Rigid PCB?

1, Structure and Materials:

• Material: Rigid PCBs are made from solid and inflexible materials like fiberglass (FR4 is the most common). These materials give the PCB its stiffness and strength.
• Layers: Rigid PCBs can have multiple layers (single-layer, double-layer, or multi-layer), with each layer consisting of a copper trace pattern laminated onto the board. The layers are separated by insulating material.
• Thickness: The board’s thickness is uniform and typically ranges from 0.2mm to several millimeters, depending on the application.

2, Design and Manufacturing:

• Design: Rigid PCBs have a flat, inflexible structure, making them suitable for devices where the circuit board is not subjected to any movement or bending.
• Manufacturing Process: The manufacturing process for rigid PCBs involves etching the copper layers, drilling holes for components, and then applying solder masks and silkscreens. Once fabricated, they maintain a fixed shape.
• Component Mounting: Components are usually mounted on one or both sides of the board using through-hole or surface-mount technology.

3, Applications:

• Consumer Electronics: Rigid PCBs are used in most consumer electronics, such as computers, televisions, and smartphones, where the board doesn’t need to bend.
• Automotive and Industrial Equipment: They are also widely used in automotive systems, industrial controls, and any application requiring a robust and durable circuit board.
• Advantages: Rigid PCBs are durable, cost-effective for mass production, and can handle complex circuitry with multiple layers.

4,  Limitations:

• Inflexibility: The primary limitation of rigid PCBs is their inability to bend, which restricts their use in compact or dynamically moving devices.
• Space Constraints: In some designs, rigid PCBs may not be suitable due to their inability to fit into tight spaces or odd shapes.

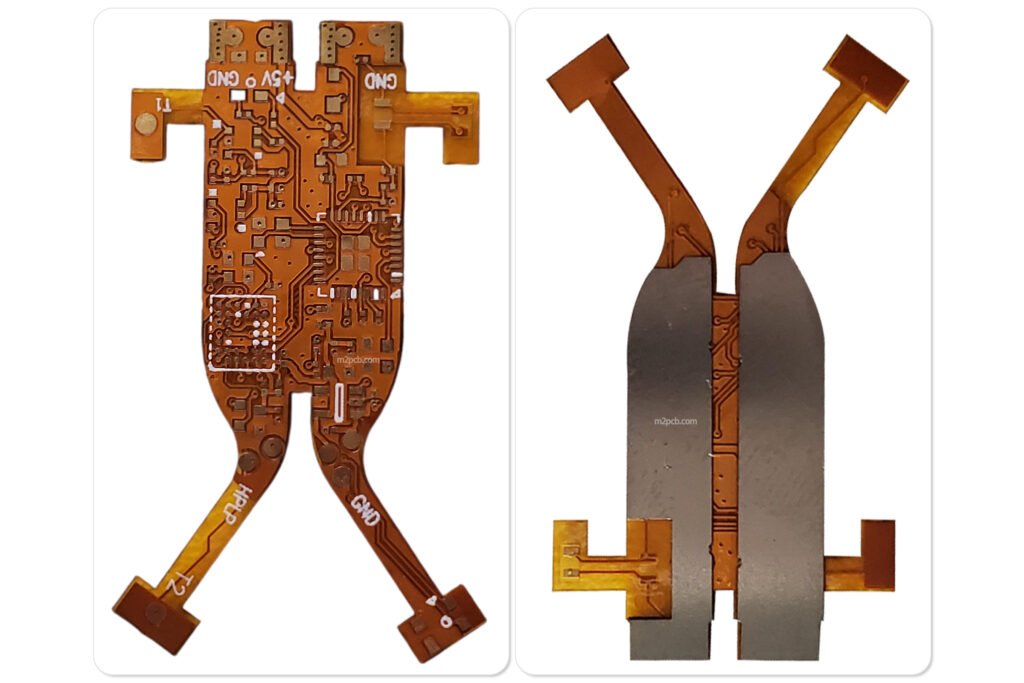

About Flex PCB?

1, Structure and Materials:

• Material: Flex PCBs are made from flexible materials like polyimide or polyester film. These materials allow the PCB to bend and flex without breaking.
• Layers: Like rigid PCBs, flex PCBs can have multiple layers. However, the copper traces are usually thinner and are designed to handle the stress of bending.
• Thickness: Flex PCBs are generally thinner than rigid PCBs, and their thickness can vary depending on the specific design requirements.

2, Design and Manufacturing:

• Design: Flex PCBs can be bent, folded, or twisted to fit into compact spaces or to connect different parts of a device that move relative to each other. The design requires careful consideration of bend radius and stress points to ensure reliability.
• Manufacturing Process: The process for manufacturing flex PCBs is similar to that of rigid PCBs but involves more advanced materials and techniques to ensure flexibility and durability. The copper layers are often etched, and the flexible substrate is then laminated. Adhesives used must be flexible and able to withstand bending.
• Component Mounting: Components can be mounted on a flex PCB, but this requires careful consideration of the stresses involved. Stiffeners are sometimes added in areas where components are mounted to provide support.

3, Applications:

• Wearable Devices: Flex PCBs are ideal for wearable technology, like smartwatches and fitness bands, where the board needs to bend and move with the body.
• Medical Devices: They are used in medical devices like hearing aids and implants where space is at a premium and flexibility is essential.
• Aerospace and Military: Flex PCBs are used in aerospace and military applications where lightweight and space-saving designs are critical, and where the circuitry may need to withstand vibrations and mechanical stresses.
• Advantages: Flex PCBs offer design flexibility, reduce weight, save space, and can reduce the number of connectors and solder joints needed in a device.

4, Limitations:

• Cost: Flex PCBs are generally more expensive to produce than rigid PCBs, due to the materials and manufacturing processes involved.
• Durability: While they are designed to flex, repeated bending or exposure to extreme conditions can cause wear and tear over time, potentially leading to failure.
• Complexity: Designing flex PCBs requires more expertise, especially in ensuring the board can withstand the mechanical stresses involved without compromising the electrical performance.

Could I use a Rigid-Flex Board as a Hybrid Treatment？

1, Structure and Design:

• Combination: Rigid-flex PCBs combine elements of both rigid and flex PCBs into a single board. This hybrid design typically involves a flexible section that connects two or more rigid sections.
• Design: The flexible section allows for bending and movement, while the rigid sections provide the necessary support for mounting components.

2, Applications:

• Complex Devices: Rigid-flex PCBs are often used in complex electronic devices like cameras, smartphones, and laptops, where they enable intricate designs that need to save space and weight while maintaining structural integrity.
• Military and Aerospace: These boards are also popular in military and aerospace applications due to their reliability and ability to fit into tight, complex spaces.

3, Advantages and Limitations:

• Advantages: Rigid-flex PCBs offer the best of both worlds—rigidity where needed for component mounting and flexibility where needed for design versatility.
• Cost and Complexity: However, they are even more expensive and complex to design and manufacture than either rigid or flex PCBs alone.

Let’s us Do A Conclusion:

Rigid and flex PCBs are both essential to modern electronics, each serving specific needs. Rigid PCBs offer durability and cost-effectiveness, making them ideal for mass-produced electronics where flexibility isn’t required. Flex PCBs, on the other hand, are indispensable for compact, lightweight, and flexible designs, especially in wearable technology and medical devices. As technology advances, the use of rigid-flex PCBs is also growing, providing a versatile solution that leverages the strengths of both types. Understanding the differences between these PCB types is crucial for selecting the right solution for any electronic design project.
